ANNULAR CUTTERS

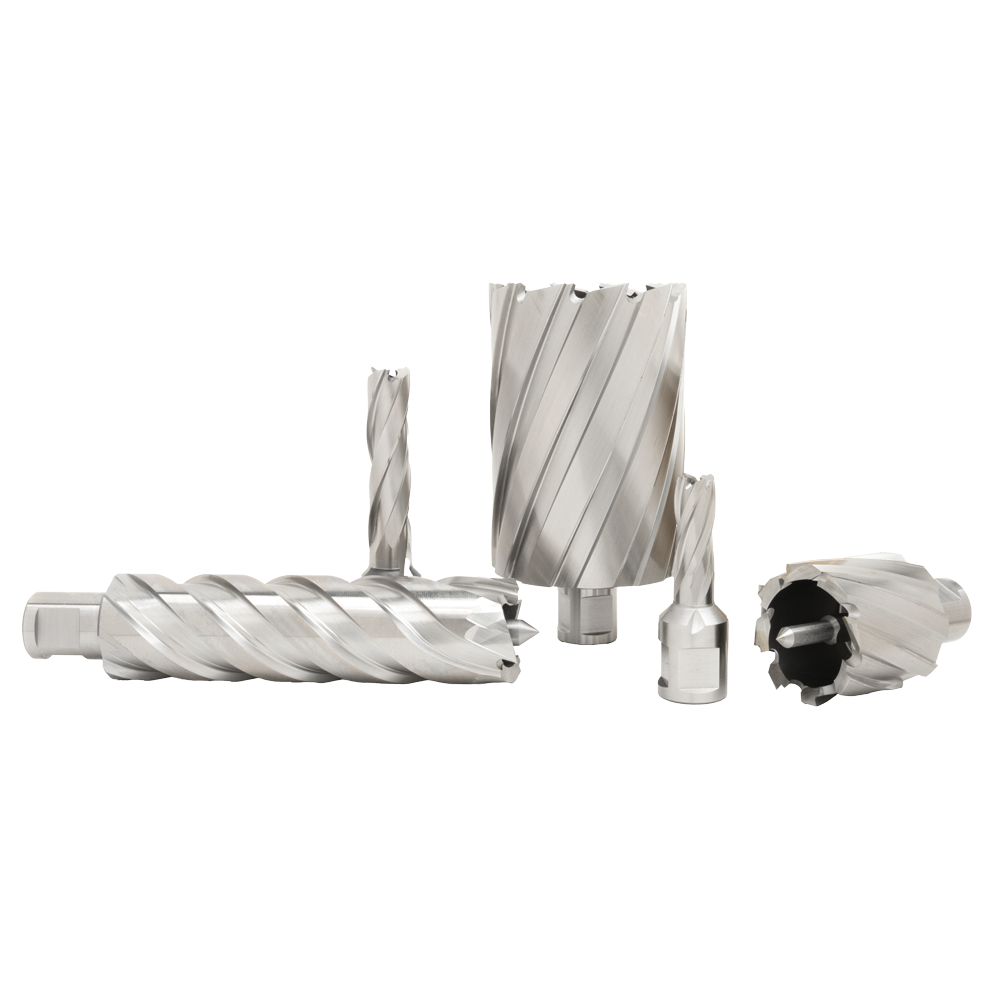

“12,000-Series” Annular Cutters

The Original Mag Drill Annular Cutter from which all others are measured

Cuts holes faster
Longer tool life
Lower cost per hole
Precision tooth geometry
For the widest range of materials

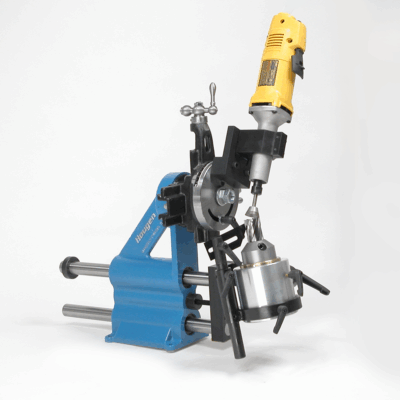

Resharpenable

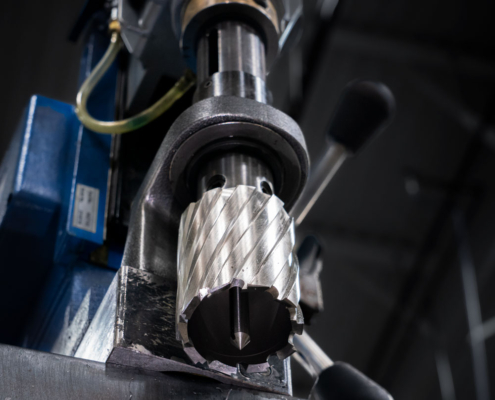

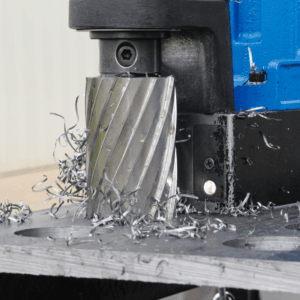

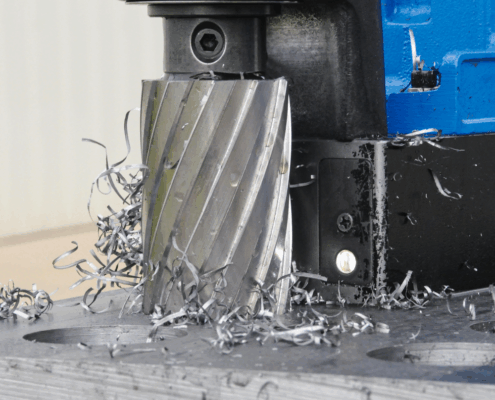

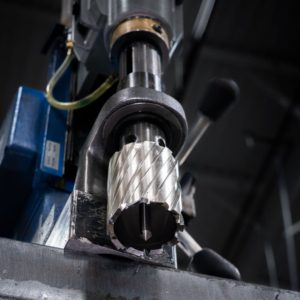

For use with Hougen^® Portable Magnetic Drills and many competitive models on materials up to 6″ thick. They are made from hardened M2 high speed steel and are precision ground for excellent performance throughout the cut and long tool life. “12,000-Series” cutters have a 3/4″ dia. double-flatted shank and for extended tool life and lower cost per hole.

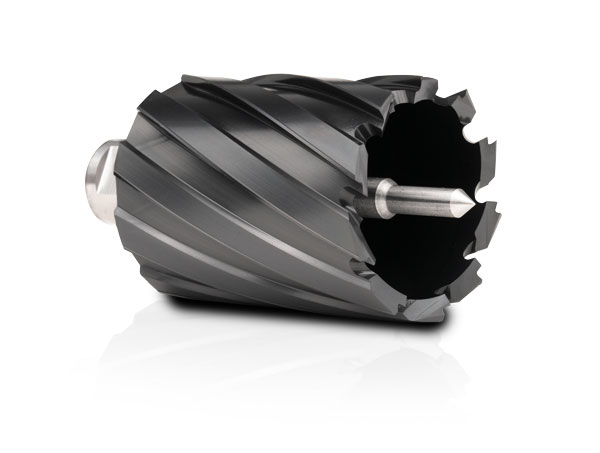

“12,000-Series” Cutters are available in M2 H.S.S and in the NEW Xtreme Cobalt Cutters with an IronEdge Coating

Special Sizes and coatings are available on request.

All cutters are available with stack geometry for drilling in stacked plate applications.

WHERE TO BUY

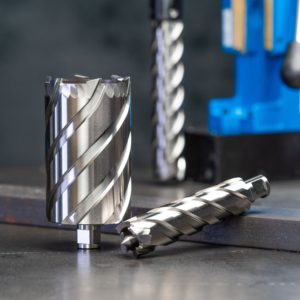

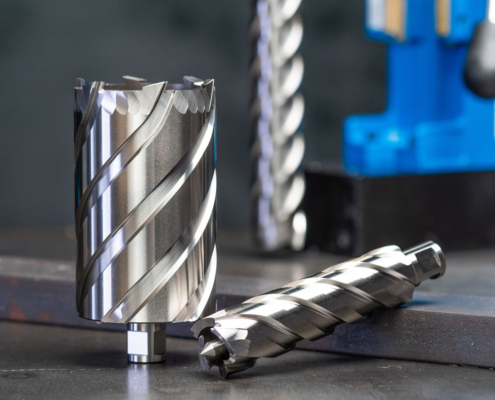

All 4″ and 6″ “12,000-Series” Cutters now have Quad Helix Flutes

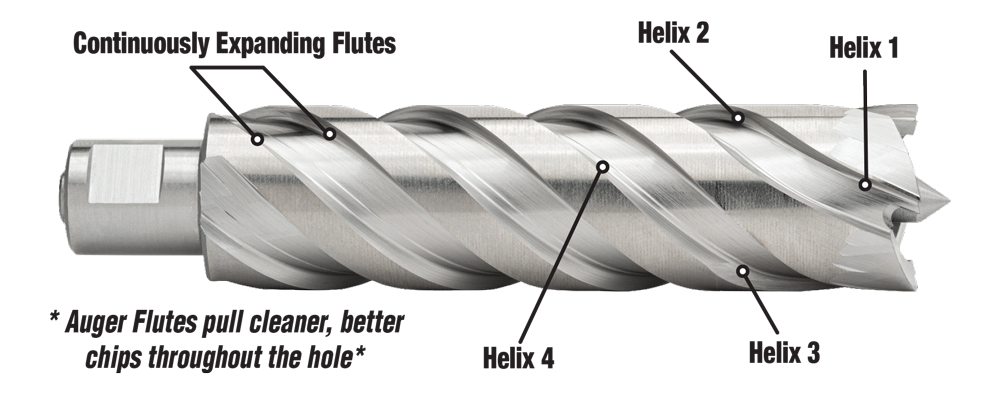

After years of design and testing, the game has changed for deep hole drilling with the NEW Quad Helix Flute “12,000-Series” Cutters. The new design improves chip flow from the bottom recesses of the cutting teeth. Reducing chip build up, time to clear the chips and increasing productivity. The one-of-a-kind continuously expanding flutes act as an auger to more efficiently extract the chips. Quad Helix Cutters feature the time proven Hougen-Edge^® tooth geometry, they are resharpenable and of course, made in the USA.

CUTTER SIZES

– All 1″ & 2″ DOC Cutters Include a Pilot –

CUTTER DIAMETER (INCHES)	DECIMAL EQUIVALENT	PART NO. - 1" (25mm) DOC	PART NO. - 2" (50mm) DOC	PART NO. - 3" (76mm) DOC	PART NO. - 4" (100mm) DOC	PART NO. - 6" (152mm) DOC
Use with Pilot	Use with Pilot	10531	10532	-	-	-
7/16	.4375	12114	12214	-	-	-
1/2	.5000	12116	12216	-	-	-
9/16	.5625	12118	12218	-	-	-
Use with Pilot	Use with Pilot	10527	10528	24131	-	-
5/8	.6250	12120	12220	-	-	-
11/16	.6875	12122	12222	-	-	-
3/4	.7500	12124	12224	3-12224	-	-
13/16	.8125	12126	12226	3-12226	4-12226	6-12226
7/8	.8750	12128	12228	3-12228	-	-
15/16	.9375	12130	12230	3-12230	4-12230	6-12230
1	1.000	12132	12232	3-12232	4-12232	6-12232
1-1/16	1.0625	12134	12234	3-12234	4-12234	6-12234
1-1/8	1.1250	12136	12236	3-12236	4-12236	6-12236
1-3/16	1.1875	12138	12238	3-12238	4-12238	6-12238
1-1/4	1.2500	12140	12240	3-12240	4-12240	6-12240
1-5/16	1.3125	12142	12242	3-12242	-	-
1-3/8	1.3750	12144	12244	3-12244	-	-
1-7/16	1.4375	12146	12246	3-12246	-	-
1-1/2	1.5000	12148	12248	3-12248	-	-
1-9/16	1.5625	12150	12250	3-12250	-	-
1-5/8	1.6250	12152	12252	3-12252	-	-
1-11/16	1.6875	12154	12254	3-12254	-	-
1-3/4	1.7500	12156	12256	3-12256	-	-
1-13/16	1.8125	12158	12258	3-12258	-	-
1-7/8	1.8750	12160	12260	3-12260	-	-
1-15/16	1.9375	12162	12262	3-12262	-	-
2	2.0000	12164	12264	3-12264	-	-
2-1/16	2.0625	12166	12266	3-12266	-	-
2-1/8	2.1250	12168	12268	3-12268	-	-
2-3/16	2.1875	12170	12270	3-12270	-	-
2-1/4	2.2500	12172	12272	3-12272	-	-
2-5/16	2.3125	12174	12274	3-12274	-	-
2-3/8	2.3750	12176	12276	3-12276	-	-
2-7/16	2.4375	12178	12278	3-12278	4-12278	-
2-1/2	2.5000	12180	12280	3-12280	4-12280	-
2-9/16	2.5625	12182	12282	3-12282	4-12282	-
2-5/8	2.6250	12184	12284	3-12284	4-12284	-
2-11/16	2.6875	12186	12286	3-12286	4-12286	-
2-3/4	2.7500	12188	12288	3-12288	4-12288	-
2-13/16	2.8125	12190	12290	3-12290	4-12290	-
2-7/8	2.8750	12192	12292	3-12292	4-12292	-
2-15/16	2.9375	12194	12294	3-12294	4-12294	-
3	3.0000	12196	12296	3-12296	4-12296	-
3-1/16	3.0625	-	12298	3-12298	4-12298	-
METRIC
Use with Pilot	Use with Pilot	10531	10532	-	-	-
12mm	.4724	12312	12412	-	-	-
13mm	.5118	12313	12413	-	-	-
14mm	.5512	12314	12414	-	-	-
15mm	.5906	12315	12415	-	-	-
Use with Pilot	Use with Pilot	10527	10528	24131	4-10528	6-10528
16mm	.6299	12316	12416	-	-	-
17mm	.6693	12317	12417	-	-	-
18mm	.7087	12318	12418	-	-	-
19mm	.7480	12319	12419	12519	-	-
20mm	.7874	12320	12420	12520	-	-
21mm	.8268	12321	12421	12521	-	-
22mm	.8661	12322	12422	12522	-	-
23mm	.9055	12323	12423	12523	-	-
24mm	.9449	12324	12424	12524	-	-
25mm	.9843	12325	12425	12525	-	-
26mm	1.0236	12326	12426	12526	-	-
27mm	1.0630	12327	12427	12527	-	-
28mm	1.1024	12328	12428	12528	-	-
29mm	1.1417	12329	12429	12529	-	-
30mm	1.1811	12330	12430	12530	-	-
31mm	1.2205	12331	12431	12531	-	-
32mm	1.2598	12332	12432	12532	-	-
33mm	1.2992	12333	12433	12533	-	-
34mm	1.3386	12334	12434	12534	-	-
35mm	1.3779	12335	12435	12535	-	-
36mm	1.4173	12336	12436	12536	-	-
37mm	1.4567	12337	12437	12537	-	-
38mm	1.4961	12338	12438	12538	-	-
39mm	1.5354	12339	12439	12539	-	-
40mm	1.5748	12340	12440	12540	-	-
41mm	1.6142	12341	12441	12541	-	-
42mm	1.6535	12342	12442	12542	-	-
43mm	1.6929	12343	12443	12543	-	-
44mm	1.7323	12344	12444	12544	-	-
45mm	1.7717	12345	12445	12545	-	-
47mm	1.8504	12347	12447	12547	-	-
46mm	1.8110	12346	12446	12546	-	-
48mm	1.8898	12348	12448	12548	-	-
49mm	1.9291	12349	12449	12549	-	-
50mm	1.9685	12350	12450	12550	-	-
51mm	2.0079	12351	12451	12551	-	-
52mm	2.0472	12352	12452	12552	-	-
53mm	2.0866	12353	12453	-	-	-
54mm	2.1260	12354	12454	-	-	-
55mm	2.1654	12355	12455	-	-	-
56mm	2.2047	12356	12456	-	-	-
57mm	2.2441	12357	12457	-	-	-
58mm	2.2835	12358	12458	-	-	-
59mm	2.3228	12359	12459	-	-	-
60mm	2.3622	12360	12460	-	-	-

TAP DRILL SIZES

– All 1″ & 2″ DOC Cutters Include a Pilot –

CUTTER DIAMETER	THREAD	DECIMAL EQUIVALENT	PART NO. 1" (25mm)	PART NO. 2" (50mm)
USE WITH PILOT			10531	10532
7/16"	1/2 - 13	.4375	12114	12214
29/64"	1/2 - 20	.4531	-	12010
31/64"	9/16 - 12	.4844	-	12011
33/64"	9/16 - 18	.5156	-	12012
17/32"	5/8 - 11	.5313	12117	12217
37/64"	5/8 - 18	.5781	-	12014
19/32"	11/16-11	.5938	-	12219
USE WITH PILOT			10527	10528
21/32"	3/4 - 10	.6563	12121	12221
23/32"	1/2-14 NPT	.7188	-	12223
49/64"	7/8 - 9	.7656	-	12020
25/32"	7/8 - 9	.7812	12125	12225
59/64"	1 -1 2	.9219	-	12025

CUTTER KITS

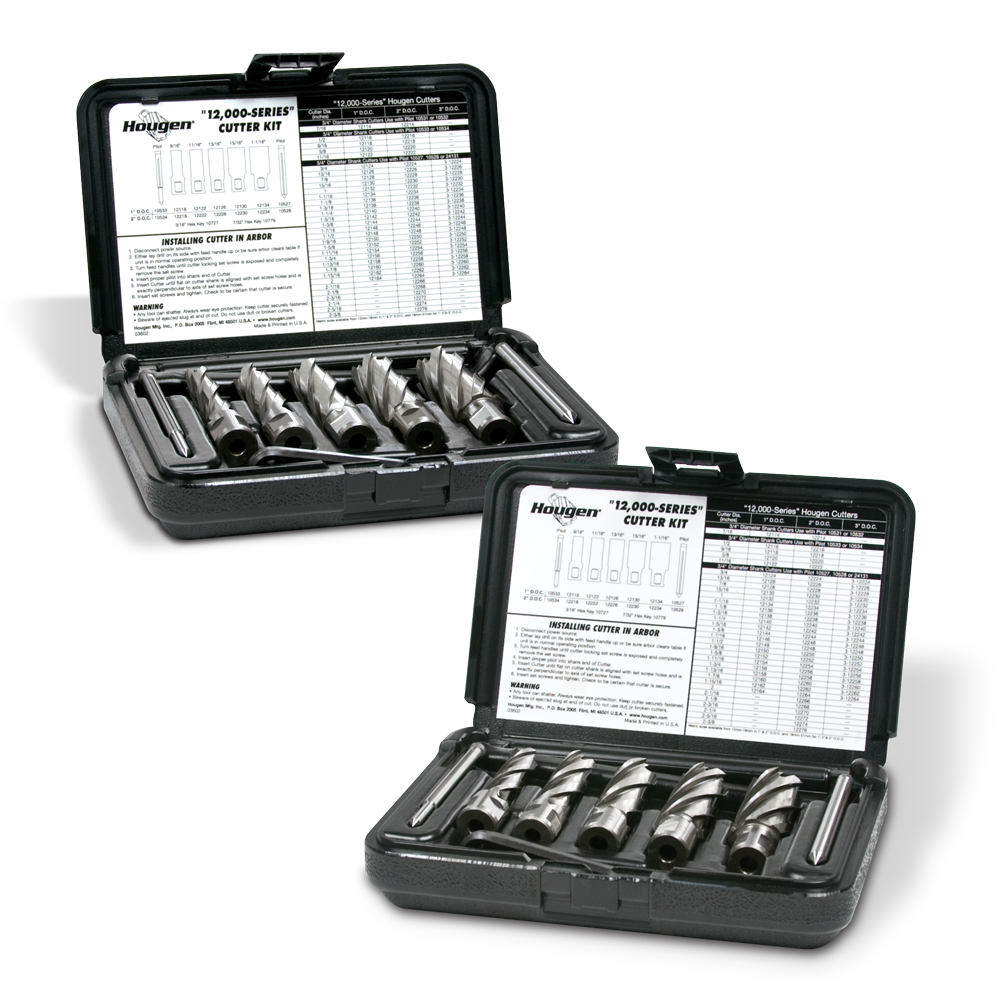

“12,000-Series” Cutter Kits

PART NO.	DESCRIPTION	D.O.C
12001	Plastic tool case contains (2) Pilots, (2) Wrenches and (5) Cutters (9/16, 11/16, 13/16, 15/16 & 1-1/16")	1"
12002	Plastic tool case contains (2) Pilots, (2) Wrenches and (5) Cutters (9/16, 11/16, 13/16, 15/16 & 1-1/16")	2"
12003	Plastic tool case contains (2) Pilots, (2) Wrenches and (5) Cutters (14mm, 16mm, 18mm, 20mm, 22mm)	25mm
12004	Plastic tool case contains (2) Pilots, (2) Wrenches and (5) Cutters (14mm, 16mm, 18mm, 20mm, 22mm)	50mm
12005	Plastic tool case contains (2) Pilots, (2) Wrenches and (5) Cutters (5/8, 3/4, 7/8, 1, 1-1/8)	1"
12006	Plastic tool case contains (2) Pilots, (2) Wrenches and (5) Cutters (5/8, 3/4, 7/8, 1, 1-1/8)	2"
12007	Plastic tool case contains (3) Pilots, (2) Wrenches and (5) Cutters (7/16, 17/32, 21/32, 25/32, 7/8")	2"
12601	TiN Coated - Plastic tool case contains (2) Pilots, (2) Wrenches and (5) Cutters (9/16, 11/16, 13/16, 15/16 & 1-1/16")	1"
12702	TiN Coated - Plastic tool case contains (2) Pilots, (2) Wrenches and (5) Cutters (9/16, 11/16, 13/16, 15/16 & 1-1/16")	2"
12802	Xtreme Cobalt M42 - Plastic tool case contains (2) Pilots, (2) wrenches and (5) Cutters (9/16, 11/16, 13/16, 15/16, 1-1/16")	2"

“12,000-Series” Three Piece Cutter Kits

PART NO.	DESCRIPTION	D.O.C.
12980-1	Plastic tool case contains (3) Pilots and (3) Cutters (1/2, 5/8 & 3/4")	1"
12981-1	Plastic tool case contains (3) Pilots and (3) Cutters (9/16, 11/16 & 13/16")	1"
12982-1	Plastic tool case contains (3) Pilots and (3) Cutters (5/8, 3/4 & 7/8")	1"
12983-1	Plastic tool case contains (3) Pilots and (3) Cutters (11/16, 13/16 & 15/16")	1"
12985-1	Plastic tool case contains (3) Pilots and (3) Cutters (13/16, 15/16 & 1-1/16")	1"
12980-2	Plastic tool case contains (3) Pilots and (3) Cutters (1/2, 5/8 & 3/4")	2"
12981-2	Plastic tool case contains (3) Pilots and (3) Cutters (9/16, 11/16 & 13/16")	2"
12982-2	Plastic tool case contains (3) Pilots and (3) Cutters (5/8, 3/4 & 7/8")	2"
12983-2	Plastic tool case contains (3) Pilots and (3) Cutters (11/16, 13/16 & 15/16")	2"
12985-2	Plastic tool case contains (3) Pilots and (3) Cutters (13/16, 15/16 & 1-1/16")	2"
12985-3	Plastic tool case contains (3) Pilots and (3) Cutters (13/16, 15/16 & 1-1/16")	3"

PILOTS

“12,000-Series” Pilots

PART NO.	DESCRIPTION
10527	1" D.O.C. Pilot (5/8" - 2-3/8" & 16mm - 60mm)
10531	1" D.O.C. Pilot (7/16 - 9/16" & 12 - 15mm)
10528	2" D.O.C. Pilot (5/8" - 2-3/8" & 16mm - 60mm)
10532	2" D.O.C. Pilot (7/16 - 9/16" & 12 - 15mm)
24131	3" D.O.C. Pilot (3/4" - 3-1/16" & 19mm - 52mm)
4-10528	4" Pilot for Extended Reach “12,000-Series”
6-10528	6" Pilot for Extended Reach “12,000-Series”

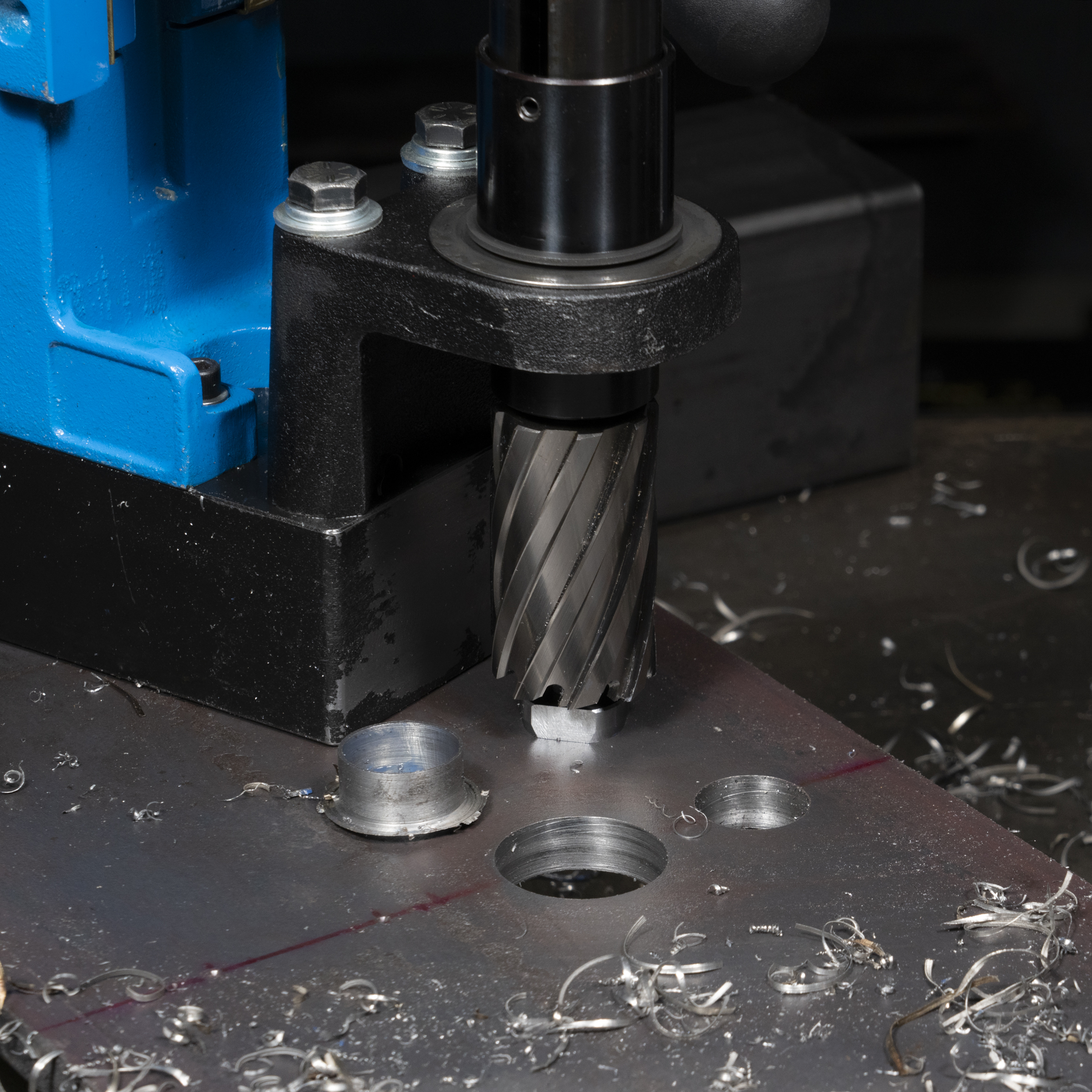

Hole Enlarging Pilots

PART NO.	DESCRIPTION
07370	Replaceable Pilot
07373	11/16" Dia. Pilot Assy
07372	13/16" Dia. Pilot Assy
07371	15/16" Dia. Pilot Assy
07368	11/16" Replaceable Nose
07367	13/16" Replaceable Nose
07366	15/16" replaceable Nose
09111	Hole Enlarging Pilot Kit - Includes one of each nose and a pilot in a plastic case
