RotaCutTM Sheet Metal Cutters

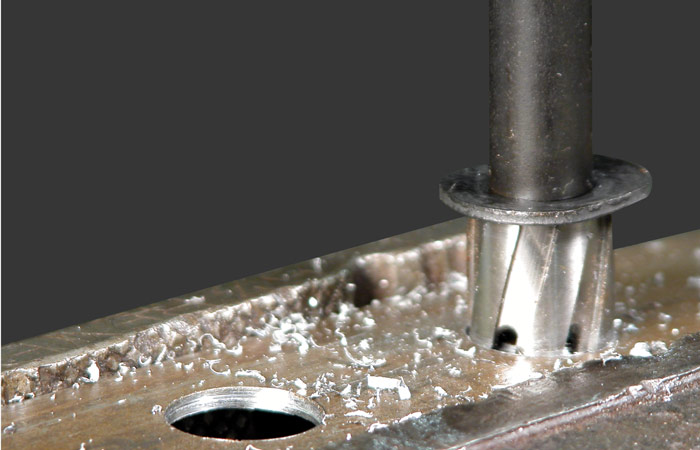

RotaCut's are far superior to twist drills and hole saws. They cut 3x faster and last 10x longer, plus there's no comparison in quality. Use with hand held drills or drill presses with a 3/8" or 1/2" chuck for holes in sheet metal, plate materials, and plastics up to 1/2" thick.
Ideal for: Electrical, Piping, Conduit Work, Sheetmetal Fabrication, Spotweld Removal, Maintenance Installations, HVAC, PHCC, Automotive Aftermarket and many others... |
RotaCut Small Diameter Cutter Kits
Part No. |
Description |
D.O.C. |
11075(C) Fractional Kit |
Plastic tool case contains 11088 Arbor Assembly, Center Punch, extra Pilot, and (7) Cutters (5/16, 3/8, 7/16, 1/2, 9/16, 5/8 & 3/4") |
1/4" (6.4mm) |
11077 Metric Kit |
Cutter sizes (8, 10, 12, 14, 16, 18 & 20mm) |
1/4" (6.4mm) |
11085 Master Kit |
Cutter sizes (1/4, 9/32, 5/16, 11/32, 3/8, 13/32, 7/16, 29/64, 15/32, 1/2, 17/32, 9/16, 5/8, 11/16, 23/32, 3/4") |
1/4" (6.4mm) |
11086 Master Kit |
Cutter sizes (6, 7, 8, 8.5, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, & 20mm) |
1/4" (6.4mm) |
11083 |
(3) 11029 Pilots for 11088 |
|
10565 |
Hex Wrench for 11088 Arbor |
|
03770C |
Center Punch |
|
RotaCut Large Diameter Cutter Kit
Part No. |
Description |
D.O.C. |
11078 |
Plastic tool case contains 11005 Arbor Assembly, Center Punch, extra Pilot, and (6) Cutters (7/8, 1, 1-1/8, 1-1/4, 1-3/8, & 1-1/2") | 1/2" (12.7mm) |
11028 |
Pilot for 11005 Arbor |
|
03770C |
Center Punch |
|
03996 |
Hex Washer |
|
Combines 11075 & 11078 into One Kit!
Part No. |
Description |
D.O.C. |
11087 |
Plastic tool case contains (13) Cutters (5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4,1-3/8, & 1-1/2") two Arbors (11088 & 11005), Center Punch and extra Pilots. |
1/4" & 1/2" (6.4mm - 12.7mm) |
RotaCut™ Cutters
Fractional Sizes |
|||
Dia. inches |
Decimal Equivalent |
Part No. |
Max D.O.C. |
With 3/8-24 Threaded Hole |
|||
 |
|||
1/4 |
.2500 |
11100 |
1/4" |
1/4 |
3 pack |
11100c |
1/4" |
9/32 |
.2812 |
11102 |
1/4" |
5/16 |
.3125 |
11104 |
1/4" |
5/16 |
3 pack |
11104C |
1/4" |
11/32 |
.3438 |
11106 |
1/4" |
3/8 |
.3750 |
11108 |
1/4" |
3/8 |
3 pack |
11108C |
1/4" |
13/32 |
.4062 |
11110 |
1/4" |
27/64 |
.4219 |
11111 |
1/4" |
7/16 |
.4375 |
11112 |
1/4" |
7/16 |
3 pack |
11112C |
1/4" |
29/64 |
.4531 |
11113 |
1/4" |
15/32 |
.4688 |
11114 |
1/4" |
1/2 |
.5000 |
11116 |
1/4" |
1/2 |
3 pack |
11116C |
1/4" |
17/32 |
.5312 |
11118 |
1/4" |
 |
|||
9/16 |
.5625 |
11120 |
1/4" |
9/16 |
3 pack |
11120C |
1/4" |
5/8 |
.6250 |
11124 |
1/4" |
5/8 |
3 pack |
11124C |
1/4" |
11/16 |
.6875 |
11128 |
1/4" |
11/16 |
3 pack |
11128C |
1/4" |
23/32 |
.7188 |
11130 |
1/4" |
3/4 |
.7500 |
11132 |
1/4" |
3/4 |
3 pack |
11132C |
1/4" |
With 1/2-20 Threaded Hole |
|||
13/16 |
.8125 |
11136 |
1/2" |
7/8 |
.8750 |
11140 |
1/2" |
15/16 |
.9375 |
11144 |
1/2" |
1 |
1.0000 |
11148 |
1/2" |
1-1/16 |
1.0625 |
11152 |
1/2" |
1-1/8 |
1.1250 |
11156 |
1/2" |
1-3/16 |
1.1875 |
11160 |
1/2" |
1-1/4 |
1.2500 |
11164 |
1/2" |
1-5/16 |
1.3125 |
11165 |
1/2" |
1-3/8 |
1.3750 |
11166 |
1/2" |
1-7/16 |
1.4375 |
11167 |
1/2" |
1-1/2 |
1.5000 |
11168 |
1/2" |
Metric Sizes |
|||
Dia. metric |
Decimal Equivalent |
Part No. |
Max D.O.C. |
With 3/8-24 Threaded Hole |
|||
|
|||
6 |
.2362 |
11206 |
6.4mm |
7 |
.2756 |
11207 |
6.4mm |
8 |
.3150 |
11208 |
6.4mm |
8.5 |
.3346 |
11285 |
6.4mm |
9 |
.3543 |
11209 |
6.4mm |
10 |
.3937 |
11210 |
6.4mm |
11 |
.4331 |
11211 |
6.4mm |
12 |
.4724 |
11212 |
6.4mm |
13 |
.5118 |
11213 |
6.4mm |
|
|||
14 |
.5512 |
11214 |
6.4mm |
15 |
.5906 |
11215 |
6.4mm |
16 |
.6299 |
11216 |
6.4mm |
17 |
.6693 |
11217 |
6.4mm |
18 |
.7087 |
11218 |
6.4mm |
19 |
.7480 |
11219 |
6.4mm |
20 |
.7874 |
11220 |
6.4mm |
With 1/2-20 Threaded Hole |
|||
21 |
.8268 |
11221 |
12.7mm |
22 |
.8661 |
11222 |
12.7mm |
23 |
.9055 |
11223 |
12.7mm |
24 |
.9449 |
11224 |
12.7mm |
25 |
.9843 |
11225 |
12.7mm |
Part No. |
Description |
11089 |
Triple Flatted for 3/8" Chuck - Skip Proof (Pilot Drill) - 3/8" Diameter, For 3/8" - 3/4" Cutter Sizes Only |
11088 |
Triple Flatted for 3/8" Chuck For 1/4" - 3/4" Cutter Sizes |
11006 |
Triple Flatted for 3/8" Chuck - 5/8" Drill Bushing |

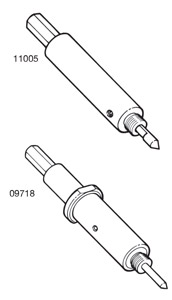

RotaCut Arbor for 1/2" Chucks
These fit 13/16" thru 1-1/2" diameter cutters (1/2-20 Thread)
Part No. |
Description |
11005 |
Triple Flatted for 1/2" Chuck |
09718 |
1/2" Triple Flatted Shank for 15/16" Drill Bushing |

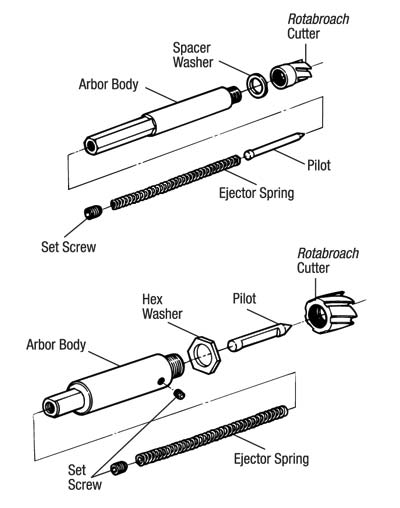

RotaCut Arbor Replacement Parts
Replacement Parts |
Arbor Assembly Part No. |
||||
11088 |
11089 |
11005 |
11006 |
09718 |
|
Arbor Body |
90224 |
90225 |
11074 |
11035 |
11038 |
Pilot |
11083 |
03913C |
11027 |
11083 |
09719 |
Ejector Spring |
11034 |
11049 |
11047 |
11045 |
11048 |
Set Screw |
11050 |
11051 |
11052 |
11050 |
11052 |
Hex Washer |
--- |
--- |
03996 |
--- |
03996 |
Spacer Washer |
11056 |
11056 |
--- |
11056 |
--- |
Stop Washer |
11055 |
11055 |
--- |
--- |
--- |
Button Head Screw |
--- |
11053 |
--- |
--- |
--- |
Stop Rod |
--- |
11064 |
--- |
--- |
--- |
Ejector Collar |
--- |
--- |
--- |
11059 |
11061 |
Roller Pin |
--- |
--- |
--- |
11062 |
11063 |
Plunger |
--- |
--- |
--- |
11058 |
--- |
Misc |
11260 Ball Spring Seat |
--- |
11050 Pilot Set Screw |
--- |
--- |
 |
